户外集成柜 FTTH 户外机柜

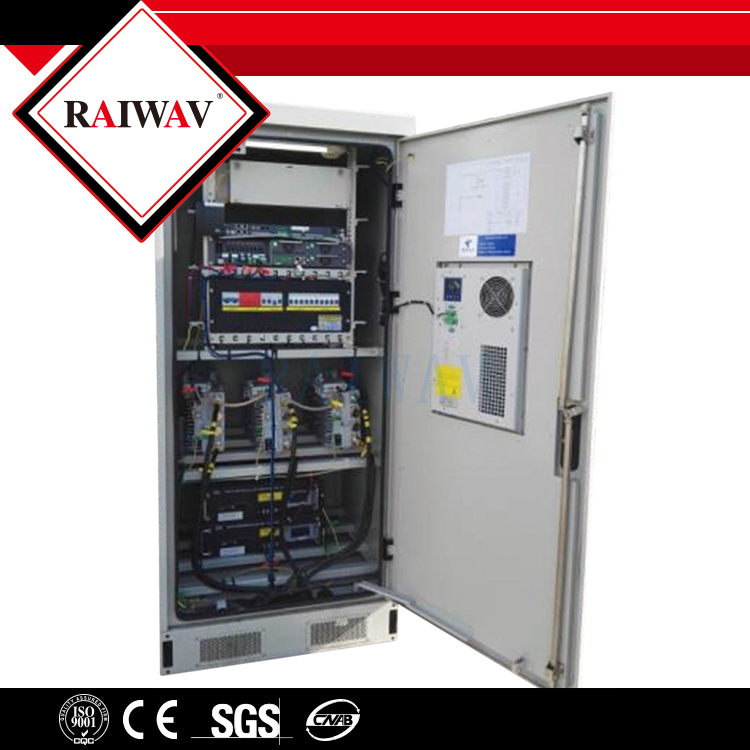

1、Waterproof Telecom Equipment Outdoor Cabinet Main feature

• The main frame is welded by metal material, solid and reliable (covered aluminum plate, cold rolled steel plate, stainless steel optional);

• Surface treatment: degreasing, rust, rust phosphate (or galvanized), spray;

• Double-layer structure and the middle of insulation materials, can effectively prevent the sudden change in the internal working temperature; and effective to prevent the generation of condensation;

• Prominent roof design can effectively protect the cabinet, and can increase the appearance of the cabinet;

• All doors of the cabinet are equipped with limit device, in the outdoor operation to protect the operator;

• Standard 19 "and non-standard equipment placement platform can be installed ONU / ONT, ADSL / VDSL, AG, IAD and other equipment;

• PC folding table unique, easy to operate;

• Cabinet door lock IP65 with the use of outdoor protection level lock, three-point locking structure;

• In the anti-theft performance of the unique design and rigorous testing;

• In addition to all locks installed anti-theft lock cover, plus hanging two protective lock processing;

• Optional access control device, in the illegal open the door when the output alarm signal;

• The cabinet door adopts concealed hinge;

• The outer surface of the cabinet has no exposed fasteners;

• Install the anchor bolts in the cabinet.

• Have enough line space, alignment layout reasonable;

• The surface coating of the cabinet adopts outdoor plastic powder with excellent weather resistance;

• Installation methods are: hanging (hanging wall, overhead), landing (against the wall, independent), and so on;

• The protection degree of the cabinet can reach IP55;

• Grounding system is safe and reliable;

• Cabinet life of 20 years.

• Strict product sealing the overall test;

• Stainless steel box outdoor wet condensing field test.




2、Waterproof Telecom Equipment Outdoor Cabinet Ordering Guide
